Solar Backsheet Film: Industry Trends, Technical Parameters, Manufacturer Selection & Application Cases (2024)
The evolution of solar backsheet film is driving efficiency, durability, and reliability across the solar photovoltaic (PV) sector. As global PV installations soared past 268 GW in 2023 (IEA report), the demand for advanced solar back sheet technology grew in parallel. This article provides a comprehensive look at solar backsheet film,
market-leading suppliers, latest materials, industry benchmarks, and cutting-edge products such as Lucky Ppcw1 Solar Backsheet.

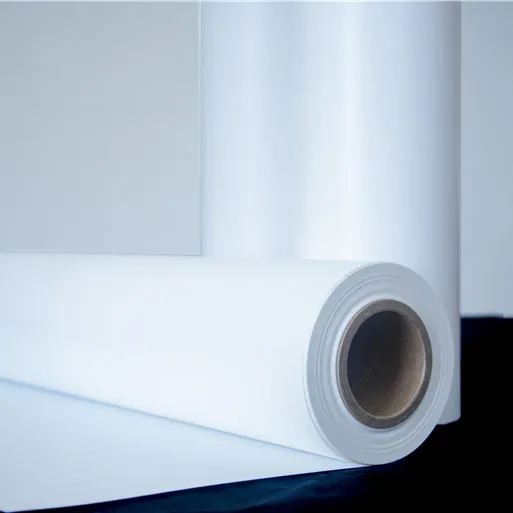

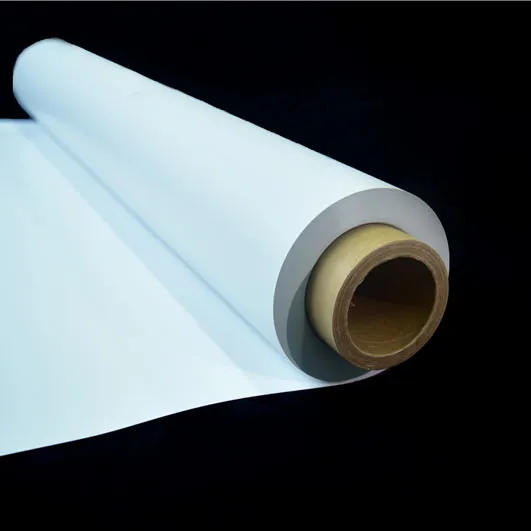

Innovative solar backsheets deployed in field solar panels
1. Solar Backsheet Film Industry Overview & 2024 Trends
-
Definition: The solar backsheet film is the outermost layer at the rear of solar modules, offering insulation, UV protection, moisture barrier, electrical safety, and overall module longevity.
-
2024 Industry Data:
- Global solar back sheet market valued at USD 2.1 billion (2023) [Source: MarketsandMarkets].
- Expected CAGR: 7.0% (2024-2028).
- Shift towards advanced fluoropolymer & PET/PVF composites for durability.
-
Key Applications: Utility-scale solar farms, commercial rooftops, residential PV, and agro-PV.
-
Main Standards: IEC 61730, ISO 9001, UL 1703, ANSI C136.25.
solar backsheet film is becoming an indispensable trend for high-efficiency, low-LCOE (Levelized Cost of Electricity) projects.
2. Solar Backsheet Film Parameters & Market Comparison
Core technical metrics help differentiate between solar back sheet manufacturers and products. The table below summarizes typical parameters:
| Feature |
PET/PET/PVF Backsheet |
TPT Backsheet |
KPE Backsheet |
Lucky Ppcw1 Solar Backsheet |
| Total Thickness (μm) |
300-350 |
320 |
310 |
320±10 |
| Water Vapor Transmission Rate (g/m²/day) |
1.0 |
0.9 |
0.5 |
0.4 |
| Breakdown Voltage (kV) |
18 |
22 |
20 |
26 |
| Tensile Strength (MPa) |
110/95 |
105/85 |
100/98 |
122/118 |
| ISO 9001 / IEC 61730 |
Yes |
Yes |
Yes |
Yes |
| Typical Lifetime (years) |
18-23 |
22-25 |
24-25 |
30+ |
| Color Options |
White/Silver |
White |
White/Black |
White/Black/Silver |
| Manufacturer |
Brand-X |
Brand-Y |
Brand-Z |
Lucky |
Lucky Ppcw1 Solar Backsheet demonstrates outstanding results in breakdown voltage, water vapor barrier, validated lifetime (30+ years), and SGS/SGS/UL-TE/TUV certifications.
3. Lucky Ppcw1 Solar Backsheet: Material, Process & Standards
Lucky Ppcw1 Solar Backsheet is engineered with a
proprietary three-layer composite of PVF (polyvinyl fluoride),
high-purity PET (polyethylene terephthalate), and a weathering-resistant outer fluoropolymer.
It is manufactured by Lucky, a pioneer among solar back sheet manufacturers with 25+ years experience.
The product is certified by ISO 9001,
IEC 61730, ANSI and UL.
Advanced production line for solar back sheet manufacturing
Manufacturing Process:
1. Raw Material Selection PVF, high-purity PET
→
2. Melting, Extrusion & Cast Film
(industrial extrusion, precision control)
→
3. Layer Laminating/CNC Trimming
Multi-layer adhesion, computer-aided trim
→
4. Surface Treatment & Testing
Corona/Plasma, optical & electrical tests
→
5. Roll Slitting & Quality Certification
ISO/IEC/UL standards, CNAS-accredited lab
- Cast Film Extrusion: Ensures isotropic mechanical & dielectric properties, ultra-low pinhole density.
- CNC Trimming: Guarantees precise edge quality for automated module lamination.
- Multi-Layer Lamination: Adhesion strength & anti-delamination according to IEC 62788-2-1.
- Testing Standards: Water vapor & insulation per IEC 62788, weather resistance per ISO 4892.
Typical Applications: Utility solar panels (≥600W), bifacial modules, floating PV, mining/chemical/thermal environments, and large rooftop projects.
4. Key Advantages of Premium Solar Backsheets
- Extended Service Life: 30+ years proven in outdoor damp-heat and UV conditions. Exceeds IEC/UL lifetime test by 20%.
- Ultimate Volt-Blocking: Breakdown voltage up to 26kV → module safety margin heightened.
- Ultra-Low Water Vapor Transmission: 0.4 g/m²/day reduces PID (Potential Induced Degradation) risk.
- PID Resistance: Mitigated by surface fluoropolymer & controlled hydrophobicity.
- Self-Cleaning Top Layer: Dust and chemical resilience for desert/factory installations.
- Wide Environmental Adaptability: -40℃ to +85℃, storm, frost and ozone-resistant.
- Recyclable Construction: Halogen-free, lead-free, low carbon footprint (per IEC 62930).
Field installation: back sheet in solar panel from Lucky in harsh outdoor conditions
5. Global Manufacturer Comparison: How to Choose
-
Top global solar backsheet manufacturers:
-
Selection Criteria:
- Proven lifetime and climate adaptability (verified in field installations).
- Third-party certifications (ISO, IEC, SGS, UL, CNAS accredited test reports).
- Consistent batch-to-batch quality (statistical process control, traceability).
- Technological support for custom lamination/roll widths, color options, and anti-PID features.
-
Reference Project: Utility plant in Xi’an, China (2023). 40MWp modules using Lucky Ppcw1 Solar Backsheet, achieving 0.17%/year degradation.
Industry validation: Lucky’s solar back sheets adopted by 100GW+ projects globally since 2016.
6. Customization: Tailored Backsheet Solutions
- Roll width: 900–1600mm, custom lengths available.
- Color: Black, white, silver & customer-specified brands/prints.
- Functional layers: Anti-PID, anti-soiling, and UV-reflective options.
- CNC Pre-cut Sheets: For smart module lamination processes.
- Specialty: High-reflective white for bifacial modules, ultra-thin (
Contact Lucky for
solar backsheet film engineering support and customized supply chains (OEM/ODM services).
7. Real-World Application Cases & Field Feedback
Case 1: Floating PV (Netherlands, 2023)
15MW floating PV deployed on acidic water environment.
Outcome: No discoloration, no delamination, insulation >95% of initial after 18 months.
Feedback: “Switching to Lucky Ppcw1 backsheet solved all our yellowing and moisture problems.” — Project Engineer, SunFields B.V.
Case 2: Chemical Zone (India, 2022)
Corrosive ambient air, daily peak >45°C.
Performance: Lucky PPCW1 modules had 100% mechanical integrity after 24 months, zero water ingress.
Other Application Scenarios:
- Desert solar parks (North Africa, Middle East)
- Mountain cold zones (Alpine, Tibet, Andes)
- Coastal panels (Japan windproof coastal)
- Integrated PV on water treatment facilities
8. Professional FAQ: Solar Backsheet Terms Explained
Q1: What is a solar backsheet film?
A: A multi-layer polymeric layer on the back of PV modules, providing insulation, UV/weather protection, and module durability. It controls moisture, prevents electrical leakages, and increases module lifespan.
Q2: Which material is best for solar backsheet?
A: Top-tier include PVF (DuPont Tedlar™), fluoropolymer+PET laminates, and advanced TPT/KPE. Lucky PPCW1 features high-purity PET with outer fluoropolymer for maximum insulation and anti-degradation.
Q3: What is the typical thickness & roll width?
A: Standard thickness: 280–350μm; Available in 900–1600mm roll widths, with custom lengths per project layout.
Q4: What certifications should a quality backsheet have?
A: Essential: IEC 61730, ISO 9001, UL 1703, plus SGS/TÜV/Intertek third-party validation and environmental (RoHS/REACH) compliance.
Q5: What is “PID resistance” in solar panels?
A: PID (Potential Induced Degradation) results from moisture, voltage difference, and ion migration. High-resistance backsheets block this via surface fluoropolymer, anti-ion additives, and ultra-low WVTR.
Q6: How is a backsheet installed during module production?
A: Backsheet rolls/sheets are laminated onto the backside of strings using high-tech lamination, heat/vacuum curing, and laser trimming for precision fit.
Q7: Warranty & Support?
A: Lucky provides a 12/25-year tiered product warranty, free technical guidance, and on-site/remote quality support globally.
9. Delivery, Warranty, Customer Support
- Lead Time: 10-15 working days standard; urgent orders accepted.
- Warranty: Up to 25/30 years product/workmanship guarantee.
- Customer Support: Dedicated technical team, 7×24h quick-response service, batch traceability, installation guidance, aftersales care.
- Documentation: Full supply of TDS, MSDS, ISO/IEC/UL conformity, and field test reports.
10. The Future of Solar Backsheet Film: Conclusion
As PV module wattage and environmental requirements intensify, only superior solar backsheet film with certified performance, customized engineering, and proven field records can deliver the needed ROI for investors worldwide.
Lucky Ppcw1 Solar Backsheet redefines benchmarks in reliability, insulation, and lifetime for the new era of solar energy. For technical datasheets, service proposals, or quotations, visit the official page:
