Product Description
This product can be used as a special consumable for image output such as ultrasound, endoscopic microanalysis, workstation, gel imaging system, microanalysis, etc. The image can remain non-fading for a long time and is a long-lasting video thermal paper.
(I) Video Imaging Film

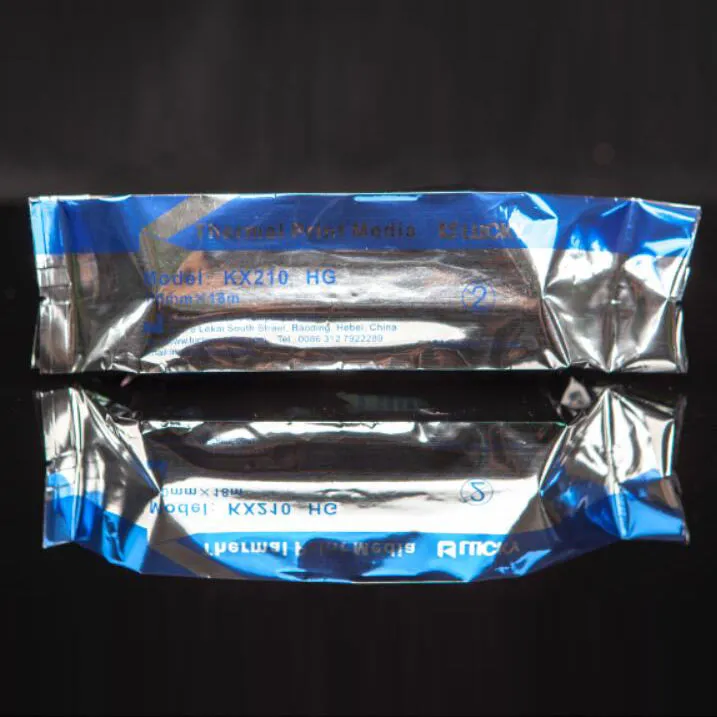

The video imaging film products manufactured by Lucky are specialized consumables designed for image output in applications such as ultrasound, endoscopic microanalysis, workstations, gel imaging systems, and microanalysis. They can also be used as printing consumables for ultra-high-definition images.
HD-type video imaging film: A high-density model for printing.
HG-type video imaging film: A high-gloss model for printing.
(II) Product Categories: Video Imaging Film
Professional Name: HD-type Video Imaging Film / HG-type Video Imaging Film
Surface Coating: High-performance, high-protection thermal-sensitive material
Specifications (Size/Thickness):
oHD-type: 110mm × 18m
oHG-type: 110mm × 20m
Production Width: 1120mm
Length: 3000m / 6000m / 7000m
(III) Product Details:
1.Varieties, Specifications, Width, Length
|
Product Type |
Professional Name |
Surface Coating |
Specifications (Size) |
Production Width |
Length |
|
Video Imaging Film |
HD-type Video Imaging Film |
High-performance, high-protection thermal material |
110mm × 18m |
1120mm |
3000m/6000m/7000m |
|
|
HG-type Video Imaging Film |
High-gloss, high-protection thermal material |
110mm × 20m |
1120mm |
3000m/6000m/7000m |
2.Performance Indicators
|
Item |
Unit |
Indicator |
||
|
|
|
HD-type |
HG-type |
|
|
|
|
Video Imaging Film |
Video Imaging Film |
|
|
Basic Performance |
|
|
|
|
|
Thickness |
μm |
73 ± 3 |
73 ± 3 |
|
|
Whiteness |
% |
≥ 80 |
≥ 80 |
|
|
Glossiness (Before Printing) |
- |
≥ 5 |
≥ 50 |
|
|
Glossiness (After Printing) |
- |
≥ 10 |
≥ 70 |
|
|
Static Chromogenic Performance |
|
|
|
|
|
Static Chromogenic Density |
- |
≤ 0.25 |
≤ 0.25 |
|
|
Maximum Density |
- |
≥ 1.50 |
≥ 1.50 |
|
|
Image Preservation Performance |
|
|
|
|
|
Heat Resistance |
- |
≥ 1.20 |
≥ 1.20 |
|
|
Moisture Resistance |
- |
≥ 1.20 |
≥ 1.20 |
|
Storage:
The product should be stored in a dark place below 30℃. Avoid exposure to radiation, light, high humidity, high dust, etc.
FAQ
1. What is video thermal paper?
Video thermal paper is a special type of paper that uses thermal printing technology for imaging. This kind of paper reacts to the heat of the thermal print head to form a printed image, which is widely used in video surveillance, printers and medical imaging systems.
2. Which devices is video thermal paper suitable for?
Video thermal paper is suitable for thermal printers, medical imaging printers and some monitoring devices, and is compatible with these devices to provide high-quality image printing and imaging effects.
3.What are the advantages of video thermal paper?
Video thermal paper features fast printing, clear and fine image quality, and does not require ink or toner, which makes the equipment maintenance cost relatively low. It also has a relatively long storage life and is suitable for storing important images and records.
4. What are the storage conditions for video thermal paper?
Video thermal paper should be stored in a dry and cool environment, avoiding high temperatures, high humidity and direct sunlight to ensure the durability and quality of the images. Excessive temperature or humidity can affect the image quality and durability of the paper.
5. How long can video thermal paper be stored?
The image retention time of video thermal paper depends on the storage conditions. Under normal circumstances, if stored in an appropriate environment, its images can be preserved for several years. However, long-term exposure to adverse environmental conditions (such as direct sunlight and excessively high temperatures) may cause the image to fade.
6. Is video thermal paper suitable for medical imaging?
Yes, video thermal paper is widely used in medical imaging, especially in fields such as X-rays, CT scans, and ultrasound imaging. It can provide high-resolution and precise images, meeting the high requirements of the medical industry for image quality.
7. How does video thermal paper compare with other types of paper?
Compared with traditional ordinary paper, video thermal paper does not require consumables such as ink and toner, thus saving additional costs. In addition, video thermal paper has a faster printing speed and can quickly generate clear images, making it suitable for rapid processing and recording.
8. How to extend the service life of video thermal paper?
To extend the service life of video thermal paper, it should be avoided to be exposed to extreme environmental conditions such as high temperature, moisture and direct sunlight. In addition, avoiding frequent touching of the paper surface and reducing stains or physical wear can effectively extend its shelf life.
9. Is video thermal paper suitable for color printing?
Traditional video thermal paper is generally used for black-and-white image printing. Although some thermal papers can print in different colors, to achieve a color printing effect, special thermal color paper or thermal printer support may be required.
10. Is video thermal paper environmentally friendly?
Video thermal paper is usually made of environmentally friendly materials, but it may still have a certain impact on the environment if it is not stored and handled properly. Proper recycling and disposal should be carried out in accordance with the product instructions to ensure its environmental friendliness.
